0.03% Sliver Copper Hook Commutator Armature Use For Dc Motor Auto Part
Description:
Commutators are used in direct current (DC) machines: dynamos (DC generators) and many DC motors as well as universal motors. In a motor the commutator applies electric current to the windings. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced. In a generator the commutator picks off the current generated in the windings, reversing the direction of the current with each half turn, serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit. The first direct current commutator-type machine, the dynamo, was built by Hippolyte Pixii in 1832, based on a suggestion by André-Marie Ampère.
A commutator consists of a set of contact bars fixed to the rotating shaft of a machine, and connected to the armature windings. As the shaft rotates, the commutator reverses the flow of current in a winding. For a single armature winding, when the shaft has made one-half complete turn, the winding is now connected so that current flows through it in the opposite of the initial direction. In a motor, the armature current causes the fixed magnetic field to exert a rotational force, or a torque, on the winding to make it turn. In a generator, the mechanical torque applied to the shaft maintains the motion of the armature winding through the stationary magnetic field, inducing a current in the winding. In both the motor and generator case, the commutator periodically reverses the direction of current flow through the winding so that current flow in the circuit external to the machine continues in only one direction.
Nide is specialized in researching, developing and manufacturing slot, hook and flat types of commutators for DC motors and universal motors. Snowballing the experience of production ever since its foundation, the company has been making great progress in integration worldwide advanced production process and scientific management skills, its annual production reaches upon ten million pieces, which are being exported to European, southeast Asian countries, Hong Kong and Taiwan, etc.
Application
1. Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine , juicer, soymilk, and for other household appliances
2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .
3. Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type
| Materials | 0.03% or 0.08% sliver copper or customized |
| Dimension | Customized |
| Commutator type | Hook type/Raiser type |
| Application | apply to automotive industry, power tools, household appliances, and other motors |
| Package | Suitable for land and sea transportation |
| Production capacity | 1000000pcs/month |

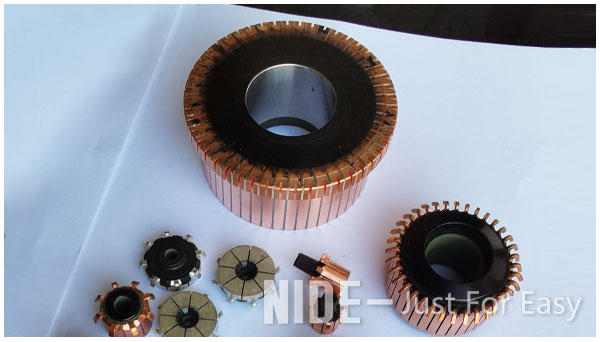

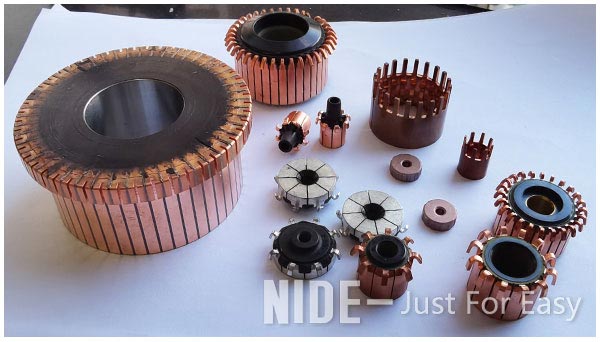

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
